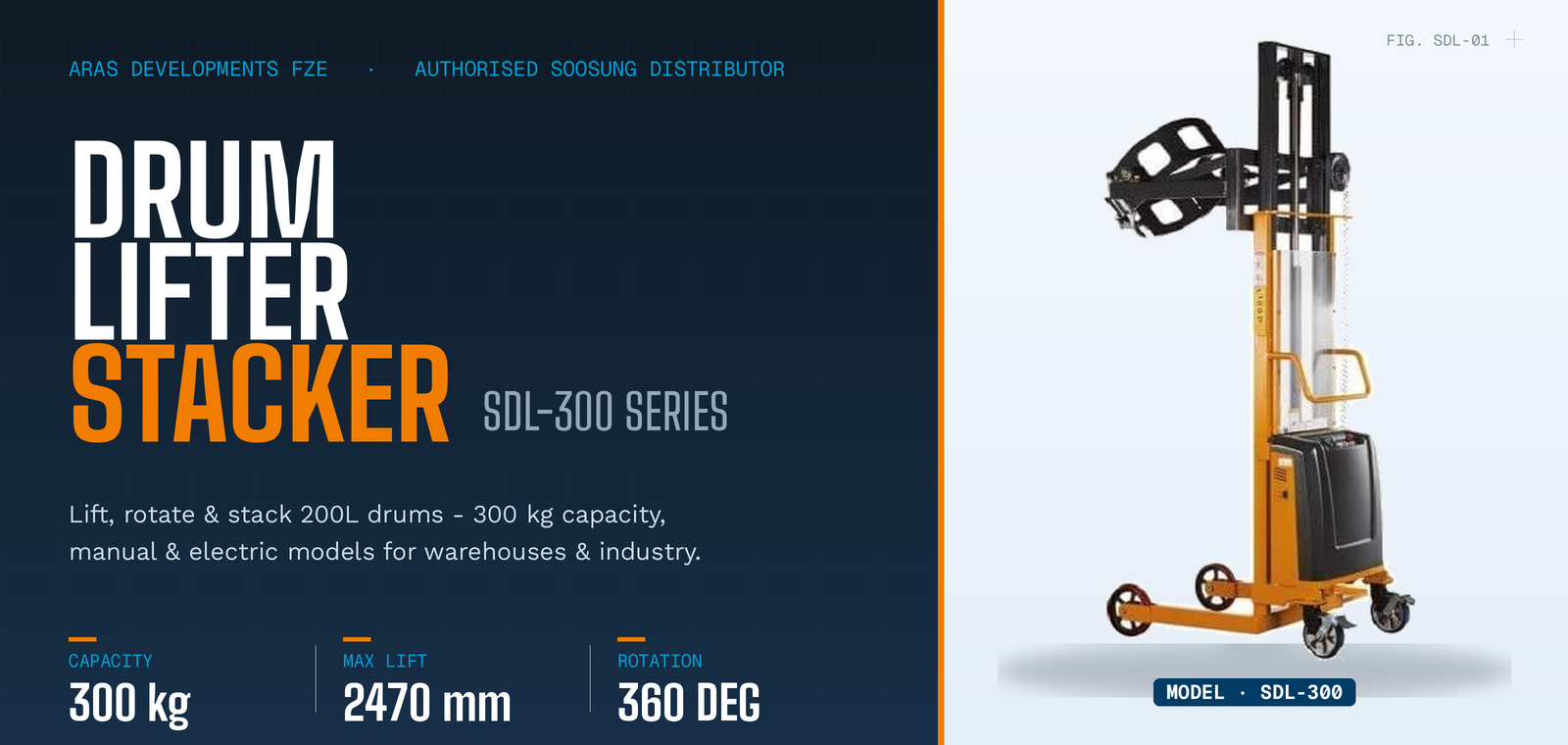

SDL-300 Series Drum Lifter & Stacker
A purpose-built drum lifter and stacker that lifts, transports, and rotates 200-litre steel drums with a 300 kg capacity. Available in manual-hydraulic (H / HL) and battery-electric (E / EL) versions, with lifting heights up to 2470 mm and full 360 degree drum rotation. Engineered for safe drum handling in warehouses and industrial sites across the UAE.
Product Overview
The Soosung SDL-300 Series is a heavy-duty drum lifter and stacker designed to lift, move, rotate, and stack standard 200-litre (ø600 x 900 mm) steel drums safely and efficiently. With a 300 kg load capacity and a clamping head that rotates a full 360 degrees, it allows operators to decant, position, and stack drums with precise control and minimal manual effort.
The series is offered in four configurations to match different operations. The SDL-300H and SDL-300HL are manual-hydraulic units (the HL providing an extended lifting height to 2460 mm), while the SDL-300E and SDL-300EL are battery-electric, powered by a DC 12V x 1.6 kW hydraulic motor with a 12V / 125Ah battery and an on-board 220V charger. Electric models lift to 1460 mm (E) and 2470 mm (EL). All units run on ø250 mm front wheels with rotating rear castors for manoeuvrability in tight warehouse spaces, making the SDL-300 Series a reliable choice for chemical, food, paint, and lubricant handling operations in the UAE.
Key Features & Benefits
Handles standard 200-litre steel drums up to 300 kg with secure clamping.
Full drum rotation for controlled pouring, decanting, and positioning.
High-lift HL and EL models stack drums onto elevated racking and platforms.
Choose manual-hydraulic (H/HL) or battery-electric (E/EL) to suit your workflow.
DC 12V x 1.6 kW hydraulic motor with 12V / 125Ah battery and built-in charger.
ø250 mm front wheels with rotating rear castors for tight-space manoeuvring.
Secure clamp head grips the drum rim for safe lifting and transport.
Overall length from 1372 mm fits confined storage and production areas.
Technical Specifications
| Specification | SDL-300H | SDL-300HL | SDL-300E | SDL-300EL |
|---|---|---|---|---|
| Capacity & Drum | ||||
| Load Capacity (kg) | 300 | 300 | ||
| Max. Drum Lifting Height (mm) | 1470 | 2460 | 1460 | 2470 |
| Drum Size (mm) | ø600 x 900L | ø600 x 900L | ||
| Drum Turning Angle | 360° | 360° | ||
| Dimensions | ||||
| Overall Length (mm) | 1372 | 1445 | ||
| Overall Width (mm) | 1070 | 1086 | 1083 | 1092 |
| Overall Height (mm) | 2065 | 2000 | 2050 | 2000 |
| Wheels | ||||
| Front Wheel (mm) | ø250 | ø250 | ||
| Rear Wheel, Rotating (mm) | ø150 | ø200 | ||
| Power | ||||
| Hydraulic Motor (kW) | N/A (Manual Type) | DC 12V x 1.6kW | ||
| Battery | N/A (Manual Type) | 12V x 125Ah / 20Hr | ||
| Battery Charger | N/A (Manual Type) | 1ø x 220V x 50/60Hz | ||
| Weight | ||||
| Weight (kg) | 205 | 250 | 250 | 300 |
⚠ Specifications are subject to change without prior notice.
Applications
Warehouses
Safe stacking and movement of drums in storage and dispatch areas.
Chemical Handling
Controlled lifting and pouring of chemical and solvent drums.
Paint & Coatings
Decanting and rotating paint and resin drums with 360 degree control.
Lubricants & Oils
Handling oil and lubricant drums in workshops and plants.
Food & Beverage
Hygienic movement of food-grade drums and containers.
Distribution Centres
Efficient drum put-away and order picking at height.
Lifting and stacking drums, not just moving them
Where a drum trolley shifts a drum across the floor, the SDL-300 is about the vertical job — lifting a full drum onto racking, a spill pallet or a mixing station, and stacking drums safely instead of manhandling them up by hand. Anyone who has watched two people wrestle a 200-litre drum onto a second tier already knows the case for it.
That lift-and-place ability is what keeps a drum store tidy and safe. Drums go up and come down under control, pouring and decanting happen at a set height, and the back-injury risk that comes with lifting full drums largely goes away.
Where it fits alongside a drum trolley
Plenty of operations run both: a trolley for moving drums around, and a lifter-stacker like the SDL-300 for getting them on and off racking or up to working height. If you store drums on more than one level, or decant regularly, the lifting version is the one that removes the risky manual handling.
Interested in the Soosung SDL-300 Series?
ARAS Developments FZE is your authorised supplier of Soosung drum handling equipment in the UAE.
Get pricing & availability.
Frequently Asked Questions
How is the SDL-300 different from a drum trolley?
A trolley moves a drum horizontally across the floor; the SDL-300 lifts and stacks it — onto racking, spill pallets or mixing stations, and up to pouring height. If your drums need to go up as well as along, this is the tool for it.
Can the SDL-300 stack drums on racking?
Yes, that is its main purpose — controlled lifting and stacking rather than manual handling. Tell us your drum type, weight and the heights involved and we will confirm the right model.
Do you supply and deliver the Soosung SDL-300 Drum Lifter & Stacker across the UAE?
Yes. ARAS Developments FZE supplies and delivers the Soosung SDL-300 Drum Lifter & Stacker across all seven emirates of the UAE, with on-site service and genuine spare parts.
Is ARAS the authorised Soosung distributor in the UAE?
Yes. ARAS Developments FZE is the authorised distributor of Soosung material-handling equipment in the UAE.
Can I get pricing, a demo or the specification sheet for the Soosung SDL-300 Drum Lifter & Stacker?
Yes. Contact ARAS Developments FZE for current pricing, an on-site demonstration and the full specification of the Soosung SDL-300 Drum Lifter & Stacker.
