Electric Reach Stacker – Ride on Type

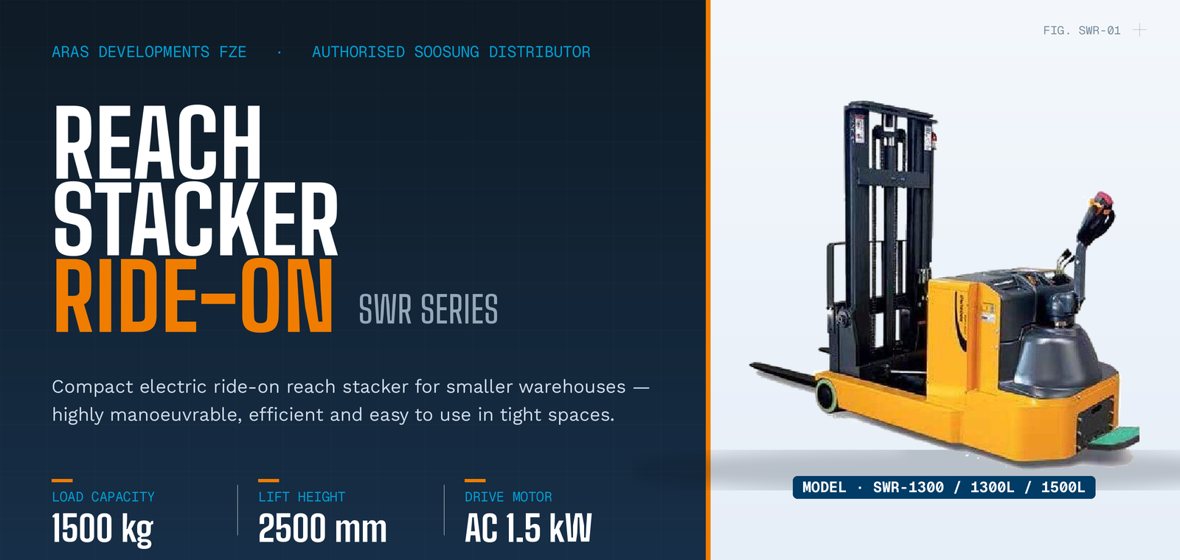

SWR Series Electric Reach Stacker – Ride on
The Soosung SWR Series is a compact electric ride-on reach stacker designed for smaller warehouses where larger forklifts aren't practical. With load capacities from 1,300 kg to 1,500 kg and lift heights up to 2,500 mm, the SW series stackers are highly manoeuvrable, efficient, and easy to use in tight spaces.
Moving Reach Function
TEMO Comfort Handle
Product Overview
The Soosung SWR Series ride-on reach stacker is the excellent alternative to bigger forklift trucks in small areas. Its compact footprint and stand-on platform design make it ideal for smaller warehouses, retail stockrooms, and confined storage spaces where space and manoeuvrability are at a premium.
Three models — SWR-1300, SWR-1300L, and SWR-1500L — combine a 550 mm reach stroke with lift heights up to 2,500 mm (and up to 3-stage 4,500 mm available). An AC drive motor, FE.T drive control, and the German-made TEMO handle deliver smooth, comfortable, and efficient operation, while the optional safety beacon enhances workplace visibility.
Key Features & Benefits
Compact & Manoeuvrable
Small footprint and ride-on platform make the SWR ideal for tight aisles and smaller warehouse spaces.
550 mm Reach Stroke
Moving reach function allows the forks to extend for stable load handling and efficient stacking.
AC Drive Motor
AC 16V × 1.5 kW drive motor provides smooth, low-maintenance performance with reliable traction.
TEMO Comfort Handle
German-made TEMO handle is engineered for more comfortable, intuitive control during extended operation.
Lift up to 2,500 mm
Standard lift heights up to 2,500 mm, with 3-stage masts available up to 4,500 mm for higher racking.
Optional Safety Beacon
An optional safety beacon improves visibility and workplace safety in busy or shared warehouse areas.
Technical Specifications
| Specification | SWR-1300 | SWR-1300L | SWR-1500L |
|---|---|---|---|
| Capacity | |||
| Load Capacity (kg) | 1,300 | 1,300 | 1,500 |
| Load Center (mm) | 500 | ||
| Lifting Height (mm) | 1,500 | 2,500 | 2,500 |
| Gradeability (%) | 10 | ||
| Reach Stroke (mm) | 550 | ||
| Dimensions | |||
| Overall Length (mm) | 2,300 | 2,317 | 2,364 |
| Overall Width (mm) | 1,061 | 1,061 | 1,061 |
| Overall Height (mm) | 1,999 | 1,859 | 1,859 |
| Wheel Base (mm) | 1,379 | 1,379 | 1,379 |
| Fork Size L×W×T (mm) | 1030 × 100 × 35 | ||
| Fork Spread Min./Max. (mm) | 216~740 | ||
| Weight Incl. Battery (kg) | 1,721 | 1,810 | 1,870 |
| Performance | |||
| Turning Radius — With / Without Footstep (mm) | 1728 / 1645 | ||
| Turning Radius — Footstep On (mm) | 2077 | ||
| Travel Speed — With / Without Load (km/h) | 3~4 / 4~5 | ||
| Lifting Speed — With / Without Load (mm/s) | 70 / 80 | ||
| Motors | |||
| Driving Motor (kW) | AC 16V × 1.5 | ||
| Hydraulic Motor (kW) | DC 24V × 2.2 kW | ||
| EPS (kW) | DC 24V × 0.4 kW (Option) | ||
| Power | |||
| Battery | 24V × 268 Ah / 5Hr | ||
| Battery Charger | AC1Ø × 220V, 50/60Hz | ||
| Control | |||
| Drive Control | FE.T Control Type | ||
| Hydraulic Control | Magnetic Contactor Type | ||
⚠ Specifications are subject to change without prior notice.
Applications
Small Warehouses
The compact alternative to full-size forklifts in warehouses where floor space is limited.
Retail Stockrooms
Ride-on design and tight turning radius suit busy retail back-of-house and stockroom operations.
Confined Storage Areas
Moving reach function enables efficient stacking in narrow aisles and confined storage layouts.
Light Manufacturing
Ideal for moving and stacking palletised components in light manufacturing and assembly facilities.
What the “reach” in a reach stacker buys you
The reach function is the whole point: the forks extend forward so the truck can place or retrieve a load sitting beyond its wheels — deeper into racking, over a low obstacle, or into a position a fixed-mast machine could never get to. Combined with stacking height, that reach is what lets the SWR work storage layouts other trucks simply can’t.
It is a specialist’s tool rather than a general runabout. Where it pays off is dense storage and awkward access — places where every extra pallet position counts and you need to load over or into something rather than straight on.
Matching it to your layout
A reach stacker rewards a layout designed around it, so the useful conversation is about your racking, access points and the loads involved. Tell us what you are storing and how it has to be placed, and we will say honestly whether a reach stacker, a reach truck or a plain stacker is the right fit.
Walkie and ride-on electric reach stackers
Buyers search for this machine under half a dozen names: electric stacker, walkie reach stacker, ride-on stacker, powered pallet stacker. They all belong to the same family. The SWR on this page is the ride-on version, built for busier floors where the operator covers real distance in a shift. If you want the walk-behind equivalent for a smaller store, look at the SWS-1000 walkie stacker. And if your racking runs much past five metres, a stacker is the wrong tool — an electric reach truck earns its higher price there. ARAS Developments FZE supplies every version from Jebel Ali Free Zone, with delivery and same-working-day response across all seven emirates.
What the SWR1300L costs
The Soosung SWR1300L starts from AED 54,000. The figure depends on the mast height you need and the options you specify. Tell us your lift height and the loads you are moving and we will confirm the exact price the same working day.
Interested in the Soosung SWR Series?
ARAS Developments FZE is your authorised supplier of Soosung material-handling equipment in the UAE.
Get pricing & availability.
Rated 4.9/5 on Google ★★★★★ · 21 reviews
“Bought Semi Electric Stacker from ARAS at good price. Best for materials handling.” — Javed Alam
“We brought an Electric Pallet Stacker and Floor Crane from ARAS. The response and support from Sayooj is excellent.” — Manoj Balan
Get a quote today
Tell us your load, lift height and hours of use — we reply the same working day (Mon–Sat, 8:30am–5:30pm).
Frequently Asked Questions
Which company supplies Soosung electric reach stackers in the UAE?
ARAS Developments FZE is the authorised UAE distributor of Soosung and supplies the Soosung electric reach stacker across the UAE. Operating since 1997 from Jebel Ali Free Zone (JAFZA), Dubai, ARAS sells and rents Soosung material handling equipment and delivers to all seven emirates with genuine parts and after-sales support. Call +971 4 887 6602.
What makes a reach stacker different from a standard stacker?
The extending reach. A standard stacker lifts a load straight in front of it; a reach stacker can extend its forks to place or pick a load set back from the wheels — deeper into racking or past an obstacle. That suits dense or awkward storage layouts.
Is the SWR suitable for narrow, dense storage?
It is designed to make better use of tight, dense storage than a conventional truck. The right answer depends on your racking and access, so share your layout and we will confirm whether it fits.
Do you supply and deliver the Soosung SWR Series Electric Reach Stacker Ride on across the UAE?
Yes. ARAS Developments FZE supplies and delivers the Soosung SWR Series Electric Reach Stacker Ride on across all seven emirates of the UAE, with on-site service and genuine spare parts.
Is ARAS the authorised Soosung distributor in the UAE?
Yes. ARAS Developments FZE is the authorised distributor of Soosung material-handling equipment in the UAE.
Can I get pricing, a demo or the specification sheet for the Soosung SWR Series Electric Reach Stacker Ride on?
Yes. Contact ARAS Developments FZE for current pricing, an on-site demonstration and the full specification of the Soosung SWR Series Electric Reach Stacker Ride on.
What is the difference between a reach stacker and a reach truck?
A reach stacker is the compact machine: walkie or ride-on, moderate lift heights, lower price, ideal up to roughly five metres of racking. A reach truck has a full operator cab, lifts into the 6 to 10 metre range and travels faster between aisles. If you are unsure which side of that line your warehouse sits on, ARAS will tell you straight based on your beam height.
