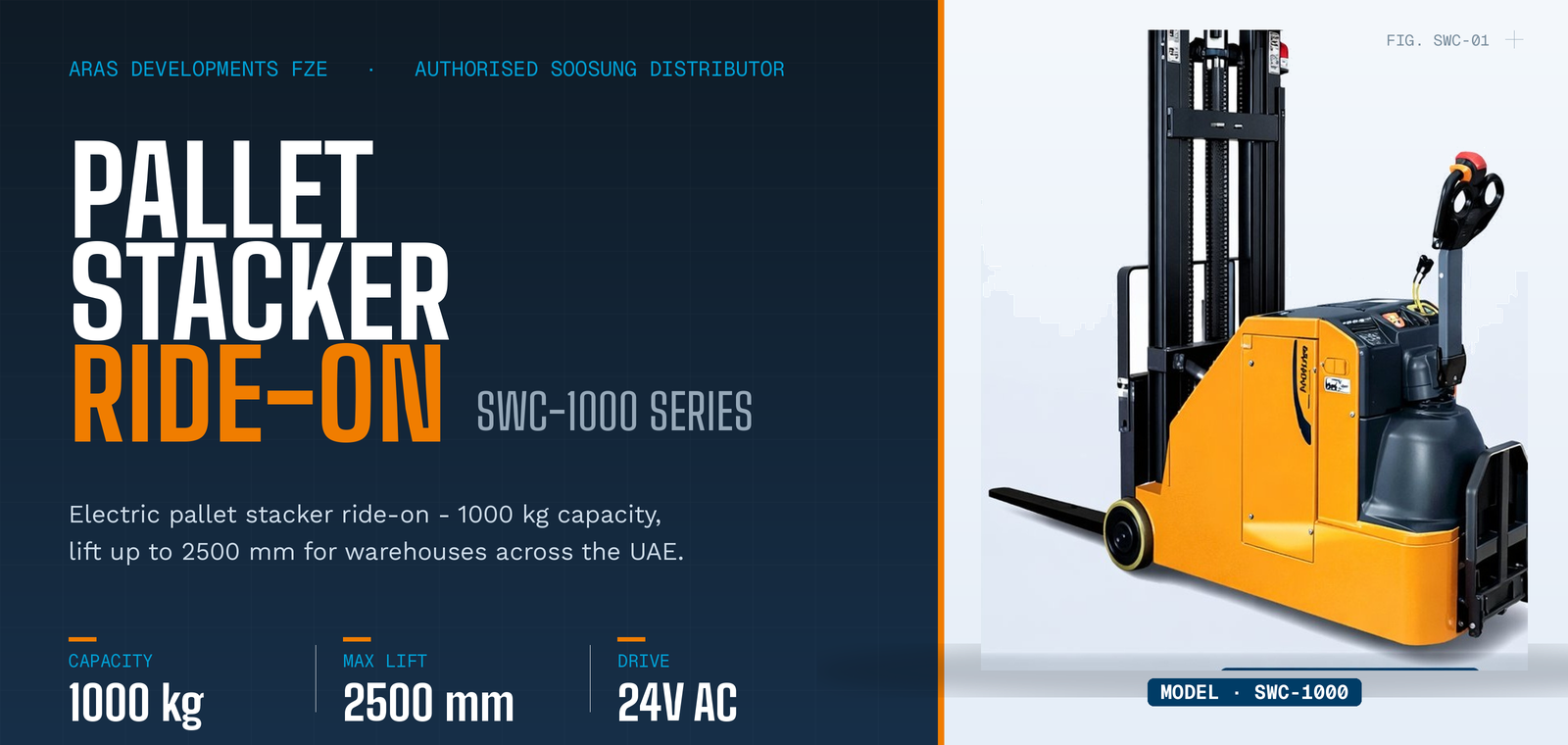

SWC-1000 Series Electric Pallet Stacker Ride On
A robust electric walkie-type pallet stacker offering 1000 kg capacity with lift heights of 1500 mm (SWC-1000) and 2500 mm (SWC-1000L). Powered by a 24V AC drive and hydraulic system, the SWC-1000 Series delivers reliable, manoeuvrable stacking in warehouses, retail storage, and logistics operations across the UAE.
Product Overview
The Soosung SWC-1000 Series is an electric walkie-type pallet stacker built for efficient pallet movement and stacking in warehouse aisles, storage areas, and distribution operations. The SWC-1000 provides a 1500 mm lifting height for standard single-level racking, while the SWC-1000L extends this to 2500 mm for double-deep or elevated racking applications, both at a 1000 kg rated load capacity and a 400 mm load centre.
The SWC-1000 Series uses an AC 1.6V × 1.5 kW drive motor paired with a DC 24V × 2.2 kW hydraulic unit, powered by a 24V × 268 Ah / 5-hour battery with a built-in AC1Ø × 220V, 50/60Hz charger. Drive is controlled by a F.E.T (field-effect transistor) controller for smooth, energy-efficient response, while hydraulic control uses a magnetic contactor type. With a compact 900 mm overall width and a 1464 mm turning radius, the SWC-1000 Series is well suited to tight warehouse aisles and storage rooms across the UAE.
Key Features & Benefits
SWC-1000L reaches 2500 mm for double-deep and elevated racking applications.
AC 1.6V × 1.5 kW drive for smooth, energy-efficient operation.
24V × 268 Ah / 5Hr battery with built-in 220V charger for all-day use.
Field-effect transistor control for precise, responsive drive performance.
Narrow 900 mm overall width for operation in tight aisles and storage rooms.
Tight turning circle for efficient manoeuvrability in confined spaces.
Rated 1000 kg at a 400 mm load centre for standard Euro and industrial pallets.
Magnetic contactor type hydraulic control for reliable lift and lower cycles.
Technical Specifications
| Specification | SWC-1000 | SWC-1000L |
|---|---|---|
| Capacity & Lift | ||
| Load Capacity (kg) | 1000 | 1000 |
| Load Center (mm) | 400 | 400 |
| Lifting Height (mm) | 1500 | 2500 |
| Fork Size L×W×H (mm) | 830 × 100 × 35 | |
| Gradeability (%) | 10 | 10 |
| Dimensions | ||
| Overall Length with Footstep (mm) | 2479 | 2511 |
| Overall Length without Footstep (mm) | 2395 | 2427 |
| Overall Width (mm) | 900 | 900 |
| Overall Height (mm) | 1999 | 1859 |
| Wheel Base (mm) | 1195 | 1195 |
| Fork Length (mm) | 830 | 830 |
| Fork Spread Min./Max. (mm) | 216-660 | 216-660 |
| Weight Incl. Battery (kg) | 1470 | 1559 |
| Turning Radius (mm) | 1464 | 1464 |
| Performance | ||
| Travel Speed with Load (km/hr) | 3-4 | |
| Travel Speed without Load (km/hr) | 4-5 | |
| Motor | ||
| Drive Motor (kW) | AC 1.6V × 1.5 kW | |
| Hydraulic Motor (kW) | DC 24V × 2.2 kW | |
| Battery & Charger | ||
| Battery | 24V × 268 Ah / 5Hr | |
| Battery Charger | AC1Ø × 220V, 50/60Hz | |
| Controls | ||
| Drive Control | F.E.T Control Type | |
| Hydraulic Control | Magnetic Contactor Type | |
⚠ Specifications are subject to change without prior notice.
Applications
Warehouses
Efficient pallet stacking in standard and elevated racking aisles.
Distribution Centres
Fast pallet movement and put-away in busy logistics operations.
Retail Storage
Compact footprint ideal for back-of-house stacking in retail outlets.
Manufacturing
Moving raw materials and finished goods between production and storage.
Loading Docks
Unloading and staging pallets at receiving and dispatch areas.
Cold Storage
Electric, emission-free operation suitable for temperature-controlled stores.
The middle ground between a pallet truck and a forklift
A ride-on stacker like the SWC-1000 fills the gap a lot of growing warehouses fall into: you have outgrown a pallet truck because you now need to lift onto racking, but a full counterbalance forklift is more truck (and more aisle) than you want. The stacker lifts pallets to the lower and middle racking levels, in tighter aisles, with the operator riding rather than walking.
That ride-on element matters more than it sounds. Once you are stacking all day, walking between every move is what slows a team down; riding keeps the pace up without jumping to the cost and footprint of a forklift.
Is a stacker the right step for you?
If you are lifting to a few metres, working in modest aisles, and a pallet truck no longer cuts it, a stacker is usually the sensible and economical next move. Go taller or heavier and a reach truck or forklift takes over. Tell us your top beam height and loads and we will place you correctly.
Interested in the Soosung SWC-1000 Series?
ARAS Developments FZE is your authorised supplier of Soosung electric stackers and material-handling equipment in the UAE.
Get pricing & availability.
Frequently Asked Questions
What is the difference between a pallet stacker and a forklift?
A stacker is lighter, works in narrower aisles and lifts to low-to-medium racking; a counterbalance forklift handles heavier loads and greater heights but needs more space and budget. The SWC-1000 suits operations that have outgrown a pallet truck but do not need a full forklift.
Why choose the ride-on SWC-1000 over a walk-behind stacker?
For all-day stacking, riding keeps the operator’s pace up and cuts fatigue. A walk-behind stacker is fine for lighter or occasional use; the ride-on earns its place when the truck is busy right through the shift.
Do you supply and deliver the Soosung SWC-1000 Electric Pallet Stacker (Ride-On) across the UAE?
Yes. ARAS Developments FZE supplies and delivers the Soosung SWC-1000 Electric Pallet Stacker (Ride-On) across all seven emirates of the UAE, with on-site service and genuine spare parts.
Is ARAS the authorised Soosung distributor in the UAE?
Yes. ARAS Developments FZE is the authorised distributor of Soosung material-handling equipment in the UAE.
Can I get pricing, a demo or the specification sheet for the Soosung SWC-1000 Electric Pallet Stacker (Ride-On)?
Yes. Contact ARAS Developments FZE for current pricing, an on-site demonstration and the full specification of the Soosung SWC-1000 Electric Pallet Stacker (Ride-On).
Authorised Soosung distributor — ARAS Developments FZE. Visit www.arasfze.com for the latest product information.
Tell us what you need — the machine, the capacity and when you need it — and we will come back with a quote.
