SRT Series 4WD Rough Terrain Forklift — 3.0-3.5 Ton
The Soosung SRT Series is a 4WD rough terrain diesel forklift built for off-road and uneven-ground operation. Available in 3.0-ton (SRT30×4) and 3.5-ton (SRT35×4) capacities, with selectable 2WD/4WD drive and a robust HATZ diesel engine, the SRT Series is engineered to handle construction sites, lumber yards, and the toughest outdoor terrain.
Product Overview
The Soosung SRT Series 4WD rough terrain forklift is designed to operate where conventional forklifts cannot. With large, deep-tread terrain tyres, high ground clearance, and selectable 2WD/4WD drive, the SRT Series delivers confident traction across mud, gravel, sand, and uneven outdoor surfaces.
Two models — SRT30×4 (3.0 t) and SRT35×4 (3.5 t) — share a powerful HATZ 4H50TIC 4-cylinder diesel engine producing 54.9 kW, paired with a hydraulic 3/2 forward-reverse transmission. A standard 3,000 mm lift height with a wide range of mast options, plus a heavy-duty chassis and service weights up to 5,900 kg, make the SRT Series ideal for demanding off-road material handling.
Key Features & Benefits
Switchable drive lets operators choose 4WD traction for tough terrain or 2WD efficiency on firm ground.
Rugged 4-cylinder HATZ diesel engine delivers 54.9 kW at 2600 rpm with strong torque for off-road duty.
SRT30×4 (3.0 t) and SRT35×4 (3.5 t) cover heavy lifting needs on construction and outdoor sites.
Large 405/70-20 front and 10.0/75-15.3 rear pneumatic terrain tyres provide grip and stability on rough ground.
Standard 3,000 mm lift height with wide-view 2-stage and full-free 3-stage masts available up to 6,000 mm.
270 mm ground clearance and a 30% gradeability rating let the SRT Series tackle inclines and obstacles with ease.

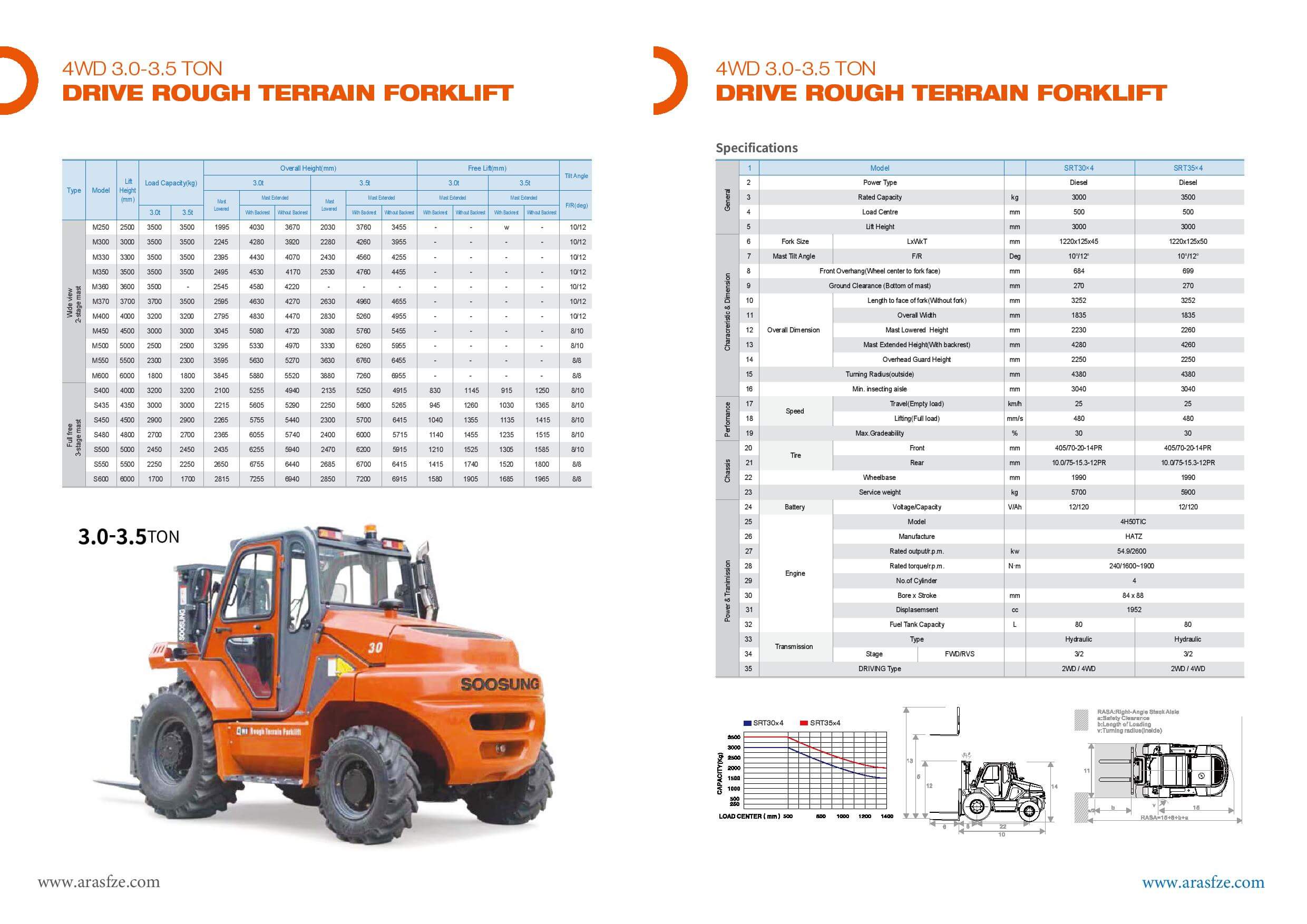

Technical Specifications
| Specification | SRT30×4 | SRT35×4 |
|---|---|---|
| General | ||
| Power Type | Diesel | Diesel |
| Rated Capacity (kg) | 3,000 | 3,500 |
| Load Centre (mm) | 500 | 500 |
| Lift Height (mm) | 3,000 | 3,000 |
| Characteristic & Dimension | ||
| Fork Size L×W×T (mm) | 1220×125×45 | 1220×125×50 |
| Mast Tilt Angle F/R (deg) | 10°/12° | 10°/12° |
| Front Overhang — Wheel Center to Fork Face (mm) | 684 | 699 |
| Ground Clearance — Bottom of Mast (mm) | 270 | 270 |
| Length to Face of Fork — Without Fork (mm) | 3,252 | 3,252 |
| Overall Width (mm) | 1,835 | 1,835 |
| Mast Lowered Height (mm) | 2,230 | 2,260 |
| Mast Extended Height — With Backrest (mm) | 4,280 | 4,260 |
| Overhead Guard Height (mm) | 2,250 | 2,250 |
| Turning Radius — Outside (mm) | 4,380 | 4,380 |
| Min. Intersecting Aisle (mm) | 3,040 | 3,040 |
| Performance | ||
| Travel Speed — Empty Load (km/h) | 25 | 25 |
| Lifting Speed — Full Load (mm/s) | 480 | 480 |
| Max. Gradeability (%) | 30 | 30 |
| Chassis | ||
| Front Tire (mm) | 405/70-20-14PR | 405/70-20-14PR |
| Rear Tire (mm) | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR |
| Wheelbase (mm) | 1,990 | 1,990 |
| Service Weight (kg) | 5,700 | 5,900 |
| Power & Transmission | ||
| Battery Voltage/Capacity (V/Ah) | 12/120 | 12/120 |
| Engine Model | 4H50TIC | |
| Engine Manufacture | HATZ | |
| Rated Output / r.p.m. (kW) | 54.9 / 2600 | |
| Rated Torque / r.p.m. (N·m) | 240 / 1600~1900 | |
| No. of Cylinder | 4 | |
| Bore × Stroke (mm) | 84 × 88 | |
| Displacement (cc) | 1952 | |
| Fuel Tank Capacity (L) | 80 | 80 |
| Transmission Type | Hydraulic | Hydraulic |
| Transmission Stage — FWD/RVS | 3/2 | 3/2 |
| Driving Type | 2WD / 4WD | 2WD / 4WD |
⚠ Specifications are subject to change without prior notice.
Applications
Construction Sites
4WD traction and high ground clearance move materials across mud, gravel, and uneven construction ground.
Lumber & Timber Yards
Rugged tyres and strong lifting capacity suit outdoor timber, log, and building-materials handling.
Off-Road & Rough Terrain
Designed for the toughest outdoor surfaces where conventional forklifts cannot safely operate.
Agriculture & Bulk Loads
Handles palletised feed, produce, and bulk materials across farms and rural distribution sites.
When you genuinely need rough terrain, and when you don’t
A rough terrain forklift is built for ground a normal warehouse truck would bog down on — construction sites, gravel and sand yards, uneven hardstanding, and outdoor storage that turns rough after a season of heavy use. Big pneumatic tyres, ground clearance and a torquey diesel engine are what let the SRT work where a cushion-tyre truck simply cannot.
It is also easy to over-buy. If your outdoor work is really a paved yard with the odd ramp, a standard pneumatic-tyre forklift will cost less and do the job. The SRT earns its premium when the surface is genuinely broken — active construction, landscaping suppliers, or remote site compounds out in the desert.
Suited to UAE site work
We see rough terrain trucks most with contractors, building-material suppliers and project sites where deliveries land on unprepared ground. If that is your world, tell us the loads and the worst surface the truck will face and we will spec it to cope rather than to a showroom ideal.
Interested in the Soosung SRT Series?
ARAS Developments FZE is your authorised supplier of Soosung material-handling equipment in the UAE.
Get pricing & availability.
Frequently Asked Questions
Do I really need a rough terrain forklift, or will a standard one do?
If your surfaces are mostly paved, a standard pneumatic-tyre forklift is cheaper and perfectly fine. The SRT is for genuinely broken ground — construction sites, gravel, sand and unprepared yards — where ordinary trucks lose traction or bottom out.
Is the Soosung SRT suitable for UAE construction sites?
Yes. It is built for the uneven, dusty, outdoor conditions common on UAE building and project sites. Share your loads and site conditions and we will confirm the right model.
Do you supply and deliver the Soosung SRT 4WD Rough Terrain Forklift across the UAE?
Yes. ARAS Developments FZE supplies and delivers the Soosung SRT 4WD Rough Terrain Forklift across all seven emirates of the UAE, with on-site service and genuine spare parts.
Is ARAS the authorised Soosung distributor in the UAE?
Yes. ARAS Developments FZE is the authorised distributor of Soosung material-handling equipment in the UAE.
Can I get pricing, a demo or the specification sheet for the Soosung SRT 4WD Rough Terrain Forklift?
Yes. Contact ARAS Developments FZE for current pricing, an on-site demonstration and the full specification of the Soosung SRT 4WD Rough Terrain Forklift.
